JIS G 3141 Commercial Cold Rolled SPCC Steels
What is SPCC Steels? SPCC steel is a commercial quality cold rolled steel. SPCC is a material grade and designation defined in JIS G 3141 standard. As a basic Carbon Steel it can be enumerated in dead mild steel. What is JIS G 3141? JIS G 3141 is a Japanese material standard for cold rolled steel.
Why Purchasing sample of this type of steel is significant for making your product? Purchasing sample of this type of steel is important for product development. By purchasing this material you can examine how this material can behave under the manipulative processes you will apply on it.
Purchase samples’ sheets for experimentation purposes in American equivalent material grade 1008 online by ordering from the online store.
What is Commercial Quality Cold Rolled Steel? The commercial quality cold rolled steel is a type of steel that can be used commercially for forming purposes that can also include shearing of a metallic sheet. Common operations that can be done on such steels are:
- Bending
- Curling
- De-cambering
- Blanking
- Shaping
- Lancing
- Piercing
- Notching
Why is SPCC material called cold rolled Steel? When a material grade is specified as cold rolled steel, it means it has been subjected to a manipulative process of cold rolling in which a metal bar is passed through high tension rollers below the re-crystallization temperature of the steel. The roller does not only decrease the thickness of the sheets but also refines the grain structure and hardens the steels. SPCC steels add more good dimensional properties than SPHC Steels. Also, after the cold rolling process there are some additive processes like rewinding, annealing, and then skin passing to make a complete SPCC material with bright finish.

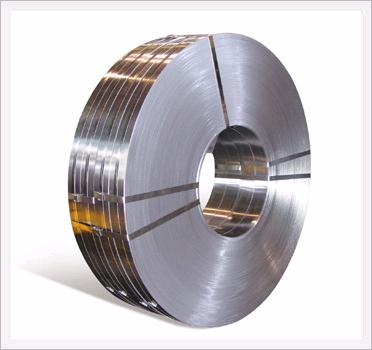

Available Forms in Market: Following are the available forms of SPCC steels in the global market:
- Mill Edge Coils
- Slit Edge Coils
- Cut to Length Sheets
Dimensional Characteristics of SPCC Steels: The applicable thickness for this SPCC material as defined in the JIS 3141 starts from 0.25 mm to 2.5 mm or over. However the width of SPCC material ranges to 2000 mm.
The Chemical Composition of SPCC Steels: JIS G 3141 defines the chemical composition of SPCC steels as under:
- Maximum percentage of Carbon (C) is 0.15 percent.
- Maximum percentage of Manganese (Mn) is 0.60 percent.
- Maximum percentage of Phosphorous (P) is 0.050 percent.
- Maximum percentage of Sulphur (S) is 0.050 percent.
Remaining is iron (Fe) percentage and with few negligible impurities.
Mechanical Properties of SPCC Steels: Following are some of the mechanical properties of SPCC steels:
- The tensile strength of the SPCC Steels is expressed in Newton per millimeters and it must be at-least 270 N/mm2 (MPa).
- The elongation property of SPCC steel varies with the ranges of thickness.
- The minimum percentage ranges for elongation is from 27 to 31 percent starting from 0.25 mm to 2.5 mm and over.
- The weld ability of these materials is conformed.
Equivalent Material Grades in Other International Standards: Read more about the international standard for commercial quality cold rolled materials in ISO 3574 1999 CR 1 Steels in article: ISO 3574 1999 CR 1 Steel
Equivalent grade of SPCC steel in ASTM is 1008 Carbon Cold rolled Steel Sheet.
Applications of SPCC & Commercial Cold Rolled Steels: Applications are as under
- SPCC Steels are primarily used in automobile parts manufacturing.
- These are also used in different applications of Construction.
- SPCC cold rolled steels coils are also consumed in galvanized products, for example GI coils, and color plates etc.
- These are also extensively used in making of electrical appliances, containers.
- Pipes and drum manufacturing is also one of the common application of SPCC materials.
- Moreover the iron armature used in tube lights chalk is also manufactured through SPCC steel.
- Other common applications of SPCC materials are: fan blades, frying pans,wall mount kits, metal stamping kit,and ceiling mount kit etc.
Suppliers of SPCC Steel: Suppliers are also listed below:
- Supplier Menggeer Metal Material (Tianjin) Co., Ltd bearing contact number 86-22-88451773 .The supplier address is Room 2126, No. 9, Keda 1st Road, Balitaitaida (Jinnan) Microelectronics Industrial Park, Jinnan District, Tianjin, China (Mainland).
- Supplier Ten One Material Supply Limited bearing contact number 86 – 0755 – 81980685 .The supplier address is Floor 9, Jiangsu Building, Futian District, Shenzhne Shenzhen Guangdong 518000 China.
- Supplier KNM Steel Canada Inc bearing contact number 1-514-6833685 .The supplier address is Pierrefonds Pierrefonds Quebec H9A-3E5 Canada.
- Supplier Three Colors Crafts Development Co.Limited bearing contact number 852-0755-89969981 .The supplier address is Flat/Rm. A, 18/F, Kingswell Commercial Tower, 171 Lockhart Road Hong Kong Hong Kong Hong Kong(China).
- Supplier Daewon Steel Co. Ltd. bearing contact number 82-2-3167675 .The supplier address is 1295-5, Jungwang-dong, Siheung-si Gyeonggi-do 429-849 Korea.
Learn how SPCC steels can be manufactured from SPHC steels, and how other material grades can be made from SPCC steels in Process Flow Illustration. Customers of SPCC Steels are recommended to know the Quality aspects before buying SPCC coils or sheets.
AboutEngr. Ali Alvi
Engineer Ali Alvi is an industrial engineer who has post graduated from the NED University, then completed his Masters in Industrial Engineering from the University of Ontario. He has also served as an engineer in International Steel Ltd as A Cold rolling mill engineer.
JIS designation of SPCC is JIS G 3141 but in Chemical compositon it is mentioned JIS G 3131.
Why?
Is it same in chemical composition.
Overall information is much better &; easy to understand
Thank you
JIS G 3131 and JIS G 3141 chemical composition is different
Our customer spec. is SPCC , and technical standart JIS G3141. But another requiremend in the technical drawing HV 0,2 must be 420 min – 800 max. How is it possible ? Could you please help about this issue? When we tested our equivalent grade ( DIN EN 10130 / DC 01 ) the hardness result is only 116 . Coud you propose steel sheet for 1 mm thickness, supply this requirements?
i want to know what will be the min – Max Hardness for SPHC & SPHE material.
because commodity is changed. G 3141 is used for steel sheets and G 3131 is used for chemical.
hope this will help for your understanding.
Can someone tell me what is the heat resistance of the SPCC? I want to use this steel for accessories to my wood burning fire pit and the heat at the core of wood burning fire pit will reach 1100c. I worry about the rust and corrosion from humidity found in Canadian summers…. how long can I expect 2mm thick SPCC to last before rusting in a humid environment?
Hi
Is the SPCC similar to DC01 or harder?
I just need soft material
SPCC and DC01 are the same material, norm is only different related with country.
can you provide the JIS G 3141 standard to me.
Thanks for question.
Actually JIS G 3141 is a specification for cold roll material, and JIS G 3131 is a specification for hot roll steel. The chemical composition of SPCC steel is similar to SPHC steels, thats why the chemical composition of JIS G 3131 is referred, however JIS G 3141 is also same.
SPHC IS BASE MATERIAL OF SPCC, HENCE, CHEMICAL COMPOSITION IS SAME.
ONLY PHYSICAL PROPERTIES AND SURFACE ROUGHNESS IS DIFFERENT BETWEEN SPHC AND SPCC.
SIMILARLY
SPHD IS BASE MATERIAL OF SPCD
AND
SPHE IS BASE MATERIAL OF SPCE
Is SPCC better than SS304? and how does it prevent rust / corrosion / oxidation… powder coating or something else??
Thank you
Ashish Thank-you for your question
For your first question, I must say It depends on the application. SS304 is stainless steel where as SPCC is a mild steel. SS304 steel is utilized in chemical, dairy, food processing, cryogenic vessels, petrochemical, kitchenware and fertilizer industries. SS304 steel is utilized in areas where environment is highly corrosive & SS304 steel is inert in that case due to high rust resistance. SPCC steel is a commerical quality steel and is utilized in applications mentioned in above article.
SPCC steel is prone to rust & is prevented by oiling on its surface.
Hello Andrew , exisiting some magnetic properties for this steel ?
SPCC-SD JIS G3141:1996 COLD REDUCED CR SHEET COIL
Thank you ,
Milan (milan@heads.cz)
What is SPRC steel.
SPRC expansion?
Equivalent ISO standard.
Regards
we are manufacturers of perforated steel sheet and use cold rolled sheet with specification SPCC-SD . can we use SPCC-1B for the same purpose .
SPCC-1b is a bright finish material & it is full hard, hardness is almost greater than 85 HRB, right now you are using a material below 65 HRB. So if you for a full hard material it can affect your process parameters and the final product & the mechanical properties like Tensile strength will be higher with lower elongation. The second thing is the bright finish if you for the SPCC-SB that is mechanical properties are same but the finish is bright then if you have no coating application like chroma-ting then it is okay to go with bright finish surface.
SPCC-1B can be use also, depending on your processes. SPCC-1B almost have no elogation (1% – 2% only). If your processes doesn’t required any drawing then should be no problem. Regarding on coating, SPCC-1B material also can be use in GI or prepainted process.
What are the Hall-Petch Equation constants for SPCG steels?
If they are not derived, how can we work to obtain them
Dear Yaseen Raza,
thank-you for your question and apologies for delayed reply as I am a freelance and was employed by a company these days, now I am back again.
Since SPCG steel is dead mild steel. Its Hell-Petch equation constant should be below 0.70
We can obtain the value this of constant by using Hell-Petch equation, stress strain diagram for SPCG material and calculating the average grain diameter with the help of ASTM grain size chart. Once we get yield stress, starting stress from the stress strain diagram, and the value of average grain diameter from ASTM grain size chart, we can put these variables in Hell-Petch equation to calculate Hell-Petch equation constant.
What is the difference between SPCC and MR steel?
MR is a steel type which is defined as low in residual elements but has high corrosion resistance, extensively used in general applications
spcc material is stainless steel or mild steel pls needful
SPCC steel is not stainless it is a dead mild steel.
Can you tell me what’s the hardness of SPCC-SD steel?
SD is the finish of the steel, therefore SPCC-SD has got same hardness range ad of SPCC. This article will help you understanding the hardness of SPCC steel. Read part Preparation of SPCC-SB or SPCC-SD Steels
Hello Sir,
Can you tell me what is the difference between SPCC-SD and SPCCT-SD?
Which of these would be suitable for a temperature of -40 degrees C ??
SPCCT is guarantee tensile strength
spcc is it also avaiable in a gaurented Yield strength?
Hello, could you help me please?
I would like to ask that what is the difference between JSC270C and Jsc270CC. Where can I find any information about it?
Thanks
We have forwarded this request to our R & D publishing department. They will see whether they can publish articles for these grades or not. Basically these are commercial quality cold rolled steels with low carbon content.
JSC270C steel grade actually refer to JFS A 2001 standard which is usage for automotive.
WHAT IS FULL MEANING OF spcc?
This is a Japanese term, you won’t find correct full meaning of abbreviation in English, but all that is available on internet is not true. One of the incorrect example of full meanings provided by some internet buddies are Standard Processed Commercial Cold Rolled Steels.
What is the difference between SPCC-SD & SPCC 2T
Can i use the SPCC-SD in place of SPCC-2T
SPCC-SD is a dull finish standard temper grade which cannot be used for SPCC-2T which is half hard material with tensile strength guaranteed.
Hi, which cold roll material best for structural use in coated sheet (GI)? SPCC-1B or SPCC-SD?
First of all SPCC-SD is not used for coating. Secondly SPCC-1B is used for this purpose. SGC570 grade galvanized steel is the best in structural quality
Hey,
Whats the difference between normal Mild steel and SPCC? Can normal MS can be used in place of SPCC in application of tongued washer in couplings?
SPCC is dead mile steel, it means it has lower carbon content that normal Mild steel. So if your application has a lower strength requirement you can use it but not in application when you need higher strength.
Im looking for SPCC- SD cold rolled supplier with Sirim Certificate..Anyone can help me ?
I think you have to see some supplier/manufacturer in Malaysia, there are many manufacturers in Malaysia and they will be surely operating under SIRIM so you can have SIRIM certificate as well while purchasing from their.
there a few manufacturer, which countries u prefer?
Dear if you please clarify that in any grade of cold rolled steel sheet which chemical and mechanical compositions or specs are the best for nickel or chrome coating after drawing the sheet to give it a shape of any auto part..Please do assist
For drawing you better use a drawing quality product like SPCD, SPCE, SPCF and SPCG steels. Now if you need deep draw you can use SPCF and SPCG steels. But if you are in need of normal drawing process you can use SPCD and SPCE steels. As far as coating is concerned there should be any problem while coating any of these steels.
1) How can i check the price of SPCC JIS G3141?
2) SPCC , This is Alu- alloy right ?
thank you
hi
thank you for your guidance
please clarify the meaning of SD abbreviation in spss-SD
Best Rigards
SD meaning is already explained that is standard quality cold rolled and dull finish
Can you suggest me is SPCC is suitable for making furniture items like almirah etc. and its potential suppliers
It can be used but you need to first perform a sample application check and then proceed with your specific application of furniture.
is there any silicon present in jis g3141 spcen sd composition… what should be percentage in this grade.. what is it effect ?
for spcen is 0.030% usage of excessive silicon might cost problem when welding
Please let us known wheather IS 513 grade D EQUAL TO spcc
Application is laser cutting , bending, and wielding
IS 513 grade O i.e. ordinary can be referred as equivalent to SPCC. Grade D is equivalent to SPCC-D grade
Could you clarify what type of material SPEC is? I thought I read once that it was electro-galvanized cold rolled steel
I guess you are asking about SECC Read here: http://www.materialgrades.com/material-grades/secc-steels-jis-g-3313-electro-galvanized-commercial-cold-rolled/
Andrew, Why spcc steel is good for stator/rotor lamination? So far I knew lamination sheet must use silicon sheet. I need to know what the difference of both?
Thanks.
Hi Adam, how are you? Great article, I do have a question (maybe not related to the above) but hoping you might have some idea or advise. With regards to international steel standards (ASTM,EN,DIN,BS,JIS,etc..), how do they co-relate to AS/NZS steel standards in term of compliance? I’m pretty sure you have heard about ACRS. Can I still purchase steel off any manufacturing countries in the world who is not listed as a certified steel manufacturer on ACRS website? By the way, I’m from New Zealand. Cheers!
I don’t know what compliance issues you face in New Zealand, however for application purpose if you are using some grade of steel listed in AS/NZS steel standards, you should see which of the corresponding steel is there in other international standards like ASTM or JIS, that may have similar chemical composition, mechanical properties and dimensions. Also the manufacturing process should be the same. Then you can of-course purchase material from there countries as well that matches or suffice your product requirements.
Hello
When ever I want to purchase Tinplate – I find two types of steel used MR and SPCC. Can anybody tell me what is tthe difference between them
Thank you
SPCC steel is the commercial quality as already discussed in the article. MR is a steel type which is defined as low in residual elements that has high corrosion resistance, extensively used in general applications
Dear ,
What is the difference between SPCC and SPCE
Read this article: http://www.materialgrades.com/jis-g3141-deep-drawing-quality-cold-rolled-spce-steel-562.html
Dear,
Its SPCC SD and SPCD same?
please explain soon
thanks
Hi just to help this question.
SPCC SD = Cold Rolled commercial grade standard dull surface.
SPCD = Cold Rolled drawing grade.
Thus both are different.
Thank you.
Hi Adam.
i have a question about equivalencies between SPCC and Ds type B material ( ASTM) its the same??
DS tybe B material seems to be of a drawing quality and SPCC is a commercial quality, hence both are different.
Hi Adam what is the minimum yield strength of SPCC?
What is the maximum and minimum hardness of SPHC and SPHE
what material oil bucket made tank
made
Oil tanks for storage purpose can be manufactured from SPCC steel. But it should be coated properly to prevent rusting.
Good day Dear,
Formally introduce myself, my name is Ariel Antonio Di Nunzio currently performing my tasks for the development of auto parts suppliers TARANTO SAN JUAN company based in Argentina, South America.
The reason why I contacted you is to quote the following materials used in our continuous production line RCM (roll coated machine).
Attached——— Tecnical document engineering specifications TARANTO SAN JUAN.
The material must meet the following technical specifications quality and dimensions to meet:
• Cold rolled steel (according to standard EN10139 DC01-C590) thickness fine zinc plated, cold rolled material on which a layer of zinc with band method is applied continuously on both sides.
• The zinc coating protects the steel from corrosion (according to standard EN10139 DC01-C590)
• Presented together with the usual surface treatment, Phosphating, a base grip excel-lens for subsequent finish (according to EN 10152 2.0 – 3.0 microns – AP Phosphate treatment(P) – without oil)
• The annual consumption is about 15 tons.
A. Material characteristic:
• Electrolytically galvanized thin sheet (EN10139 DC01) Cold rolled steel.
Composition% %C %Mn %Ti %S %P RATING
Values 0.12 máx. 0.60 – 0.045 máx. 0.045 máx. SECONDARY
B. Mechanical properties:
• Hardness: The hardness shall be measured at HV (Vickers) and those values are expressed in the scale HV30 (294 Kilograms force Newton = 30) which will be between according to the following table.
C. Dimensional control:
Test Tolerances RATING
Thickness Tolerance 0.250 [mm] -0.020 / +0.020 IMPORTANT
Strip width tolerance 520.0 [mm] -0.250 / +0.250 IMPORTANT
Vickers hardness (hardness C590) 185 – 225 IMPORTANT
D. Terms of the bands:
• The straps should be cut edges free of burrs.
• The strips can not be spliced or welded.
• The straps should have no creases, cracks, marks, scratches, or other surface defects.
E. Characteristics of packaging for normal shipments:
Roll:
• Internal diameter: 400mm minimum
• Outer diameter: 720mm maximum
• Coil weight: 1000 kg maximum
• Number of bands per roll: 1 minimum at each end, with protective cover metal blind
Presentation Delivery: The material must come to plant in good condition with no cracks or deformations caused by stacking, abuse.
I hope your prompt response.
Sincerely,
Ariel Antonio Di Nunzio
Responsable área de Desarrollo de sellado
RGV, PR y Juntas de Goma
Taranto S.A.
Av. Arana entre 7 y 8
Villa Elisa – Bs. As., Argentina
T +54 0221-473-0440
F +54 0221-473-0200
Which is the best material to make motorcycle tyre rim?
SPCC-SD material is used for producing motor cycle rim.
When receiving JIS material, does it have a heat number or cast number and will you get a material certificate for this type of material.
You should receive a mill test certificate and mil test certificate can contain heat and cast numbers depending on the manufacturer’s traceablity system.
I have ordered JIS material from a supplier, requesting a material certificate for the material being delivered. It was said that you don’t get material certificates for this type of material. I want to confirm
The supplier should give you mill test certificates or material certificates.
Can anyone tell is spcc and swpa are same or diffrent?
SWPA is a spring material and thus it is obviously different
Any different between SPCC-SD and SPCC-S??
“-S” in SPCC-S refers to tempering grade, which is in this case is skin passed hrough skin passing mill. The “D” of SPCC-SD refers to dull finish.
SPCC-S is tempered skin pass grade
SPCC-SD is tempered skin pass with dull surface finish. Hope this clarifies
What is the difference between JIS 3141 and ASTM 513?
JIS G3141 is the standard for Cold-reduced carbon steel sheets and strip and ASTM A513 is the American Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing
i want to use this sheet in water with 1000TDS and 90degree temperature, is that possible with this metal for long life?
SPCC steel is a commerical steel and it will catch rust immediately in such water.
Is SPCC-S suitable for conversion coating like zinc phosphating followed by powder coating.
Usually SPCC-S i.e. skin passed steel is normally not used for coating purposes directly as in the case of hot dip galvanization. SPCC-AS annealed grade other than skin passing may be used following expert opinion on zinc phosphating.
what is spcct? if can we get sheet material?what is the equivalent material ?
SPCCT is a material with tensile strength quaranteed. For sheet material you will have to refer to the same grade i.e. SPCCT
what is the equivalent of( 16mn3 materialChina / JIS G3141 MAT’L to DIN MATERIAL or EN STANDARD MAT’L .
IS 16Mo3 was same .Pls advise..
16Mo3 is a different material to SPCC and its equivalence is 1.5415
if only SP mentioned in drg then what we will understood spcc or spcd or spce, can any one anser it
Hi
Please tell me the JIS for ref. To hardness range in HRB of material..Eg.
JSC270C, JSC440W
Hi,
please tell me hardness of SPCC material and how much deep drawn possible from 1.20 mm thickness ?
hi,
What is the difference in SP and SPCC .
Good Day Dear.
Kindly advise us.
did the JIS G1313 SPHC equivalent to NF EN 10305-3 stander ?
CAN ANYONE TELL ME THE RELATED GRADE TO SPCC
is ASTM A1008 & G3141 SPCC are similar specification materials?
Hello there. I have a question. What does NS in (SPCC-NS) mean?
Thank you for your answer
Hello there.
I have a question. (SPCC-NS) What does NS in the material mean.
Thanks your answer
is it recommended to use SPCC material for manufacturing Aerosol insecticide container components ( dome & Cone )
Are SPCC equivalent with JSC270C sir?
Hi, can anyone confirm does 1 SPCC JIS G3141 Vietnam Pallet racking standards meet the same standards as AS 4084-2012 Australian Pallet racking Standards?
Is it similar to IS513 CR2
Is SPCC similar to St12?
The explanation of SPCC steel’s manufacturing process was enlightening. Cold rolling and the subsequent treatments like annealing and skin passing really bring out the best in the material. I appreciate the clarity with which this blog breaks down the technical details.
What is the difference between SPCC-1B and SPCC-1D?
